Innovation Meets Portability. Indeed.

Offering a powerful and stable cart-based system architecture and breakthrough design with sliding keyboard cover,
The E-CUBE i7 delivers excellent imaging performance with an ergonomic design for your comfort during scanning.
The compact i7 is versatile, featuring application-specific imaging technology with advanced transducers.
From the bedside to the procedure room, the E-CUBE i7 provides ease-of-use and workflow efficiency.

The innovative system architecture

The advantages of a cart-based system made the innovative portable system, E-CUBE i7.
Thanks to this powerful and stable architecture,
the E-CUBE i7 delivers remarkably excellent and uniform image performance throughout its lifetime.

Clinical Image

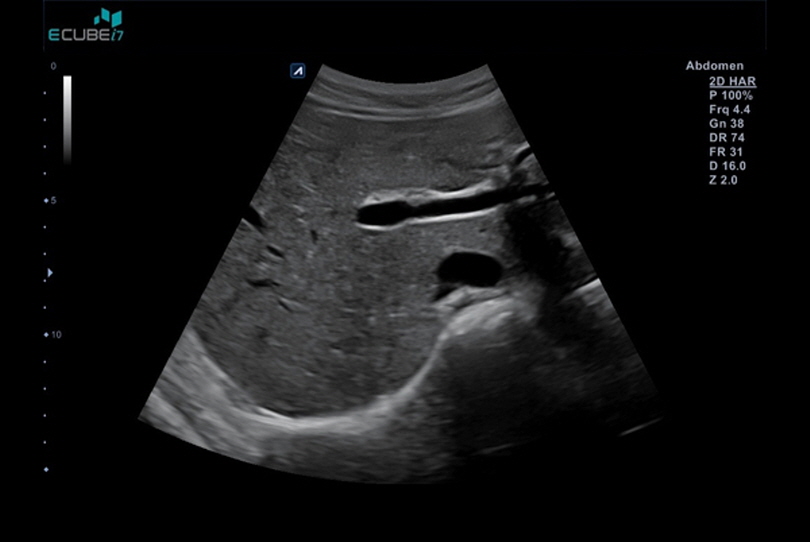

Liver
Gallbladder stone
Renal perfusion in Power Doppler
Common caroid artery in Dual Live mode
Auto Trace PW in CCA
Myoma in the uterus
Color Doppler of multiple vessels in the endometrial mass
Nabothian cyst and uterine fibroid
PW Doppler in the uterine artery
Parasternal long axis view of heart in Dual imaging with SP1-5T transducer
Color Doppler of heart
Mitral valve in short axis view
Pediatric echocardiography with SP3-8T transducer
Internal Jugular vein injection with Needle Vision™ Plus
MCP joint and its tendon with IO8-17T
Superficial vessle of the finger in Color Flow
Elbow joint injection

Excellent Imaging Quality

Crystal Signature™
High class single crystal transducer technology

ALPINION’s world leading single crystal technology, provides higher sensitivity, better penetration, and less heat degradation.
High frequency enhanced linear transducer
The E-CUBE i7 features a high-frequency linear transducer, the hockey stick-shaped IO8-17T.

The IO8-17T is ideal for imaging for superficial, nerve blocks, and vascular procedures.
Optimal Clinical Environments

Experience the sliding keyboard cover. Enjoy the comfort.
More than 80% of sonographers experience work-related pain and more than 20% of these suffer a career-ending injury.*

* Society of Diagnostic Medical Sonography Industry Standard for the Prevention of Musculoskeletal Disorders in Sonography. May 2003.

: Mobility
1 hour battery life / 7.2kg Lightweight system

: Fast boot-up
Less then 45 seconds

: Library Quiet
Library(30dB) / E-CUBE i7(31dB)

: Extended transducer
Connection up to 3 ports

White Paper
A Study of Wrist Angles when using portable ultrasound system with a wrist supporting device

Tae-Hoon Lee, Suh-Wo Choi, Hak-Jun Kim Department of Orthopedic Surgery, Korea University Guro Hospical, South Korea

Software Technologies

Needle Vision™
Xpeed ™ (Auto Image Optimization)
Auto IMT measurement
CW(Continuous Wave)
Panoramic Imaging
Stress Echo
3D4D

Transducers

C1-6T
Convex transducer (1-6MHz)

Application
Abdomen, Renal, Fetal Echo, EM Gynecology O bstetrics MSK, Urology
C5-8NT
Microconvex (5-8MHz)

Application
Abdomen, EM, Cardiac, Pediatric

L3-12HWD
High density wide footprint linear transducer (3-12MHz)

Application
Breast, EM, MSK, Vascular, Small Parts, Appendix
L3-12T
Linear transducer (3-12MHz)

Application
Breast, EM, MSK, Vascular, Small Parts, Appendix
IO3-12
Intraoral transducer (3-12MHz)

Application
EM , Small Parts
IO8-17T
High frequency hockey stick (8-17MHz)

Application
Small Parts, MSK

SP1-5T
Single crystal Phased array transducer (1-5MHz)

Application
Abdomen, Cardiology, EM, TCD
SP3-8T
Phased array transducer (3-8MHz)

Application
Abdomen, Cardiac, EM, Pediatric

EV3-10T
Endocavity transducer (3-10MHz)

Application
GYN, OB, Fetal Echo, Urology, EM
EC3-10T
Endocavity transducer (3-10MHz)

Application
GYN, OB, Fetal Echo, Urology, EM
