ALPINION

X-CUBE 60 provides healthcare professionals with a comfortable medical environment.
For confident diagnosis of a variety of diseases and conditions, optimal image performance has been realized
with the high-resolution image platform X⁺ Architecture.
X-CUBE 60 is designed to improve work efficiency and reduce user fatigue and risk of injury.
Various auto measurement tools designed for seamless workflow quickly obtain results and
the larger touch screen and newly customized control panel enhance the diagnosis comfort.
In addition, X-CUBE 60’s compact design allows for effective use of constricted scanning space.

Designed to make your daily practice easier.

Clear images with advanced technology
Clear images provide comfort and confidence in diagnosing a wide range of patients.
Auto measure &
Assistant solution
X+ Assistant and a variety of automated measurement tools reduce the exam times, alleviate fatigue from frequently used functions.
Ergonomic design
It is ergonomically designed with operators' comfort in mind and compact to increase flexibility in a healthcare environment.

Advanced Technology
Enhances Your Confidence

The excellent image quality of X-CUBE 60 is the result of Alpinion's stand-alone transducer technology and innovative imaging algorithms.
A high resolution image allows for comfortable and reliable diagnosis in a wide range of applications.

X⁺ FIT

The sophisticated parallel beamforming technology X+ FIT, improves contrast and uniformity for excellent resolution by transmitting, receiving and processing a large amount of data.

X⁺ Crystal signature

With the use of an upgraded single crystal material, it improves transmittance. In addition, Alpinion’s innovative backing material minimizes signal loss, improving penetration and image quality.

Harmonic imaging

With the use of harmonic signal processing technique, it has minimized signal loss, improving the bandwidth of the signal transmitted from the transducer. Artifact has been minimized, and resolution, contrast, and SNR have been improved to elaborately express the lesion without distortion.

Accelerate Precision of Diagnosis

Alpinion provides professional tools for all applications such as internal medicine, OBGYN, and musculoskeletal.
This technology helps healthcare professionals achieve accurate decision and smoothly communicate with patients.

X⁺ MicroView

X⁺ MicroView is the vascular imaging mode which displays micro blood flow. Users can observe the low speed blood flow of tiny blood vessel. This technology allows for accurate diagnosis by showing a low-velocity blood flow that has not been seen in the Color Doppler at a high frame rate.
CEUS (Contrast Enhancement Ultrasound)

This is a function to diagnose patients using various angiographic patterns that appear while a contrast medium, administered intravenously, diffuses in blood vessels and organ tissue. CEUS has many advantages in various clinical indications for liver disease.
Needle Vision™ Plus

Using Beam Steering technology, this feature is useful in showing the shape and orientation of the needle. The needle can be viewed more clearly by adjusting the beam angle in three steps.
CUBE Strain™

As a non-invasive examination method that evaluates myocardial function more objectively, it allows medical practitioners to confirm quantified data by tracking the speckle of 2D cardiac images and digitizing the movement of each myocardial segment.
Live HQ™

Improved volume rendering technology allows for free movement of light direction and various color maps. Realistic volume image improves anatomical understanding of the fetus, allowing accurate and quick diagnosis. It also helps to form an attachment relationship between the fetus and the parent.
Brilliant Flow

It is an special visualization impact technology of blood flow. It provides the intuitive understanding of vessel structure and boundaries by images of blood vessels that look like 3D on a 2D gray scale image. It may provide additional spatial information in CF, PDI or X+ MicroView.

Intelligent Tools For Easier Workflow

Fast and accurate diagnosis is a challenge for every healthcare professional.
The intelligent workflow provided by X-CUBE 60 for enhancing work efficiency delivers ultimate comfort to healthcare professionals.

Digital keyboard/ TGC

Touch screen supports users’ streamlined workflow. Alpinion understands repetitive movement from keyboard to touch screen. To increase the efficiency, drawing TGC and entering text on the touch screen is now possible.
X⁺ Assistant

Keystrokes have been reduced by more than 50% compared to conventional use, reducing examination time. Optimal scanning protocols are registered according to application-specific guidelines and users can optimize protocols personally.

Auto measurement solution

Automated measurement solution increases exam speed and helps enhancing accuracy of exam results reducing user dependency.

Auto EF
It is an automated measurement tool that evaluates the contractile function of the left ventricle. It automatically analyzes end diastolic volume (EDV), end-systolic volume (ESV), and ejection fraction (EF).
Auto IMT
When the user draws a line in the area where the carotid intima media thickness is to be measured, the thickness will be measured automatically and displayed on the screen.
Auto Biometry
When measuring fetal EFW, Auto Biometry detects fetal HC, BPD, FL, AC, Humerus, and automatically measures the length.
Auto Follicle
To measure superovulation, this technology counts the number of follicles and measures the volume automatically.
Auto NT
When drawing a ROI box on the area to be measured during a nuchal translucency scan maximum thickness automatically measured.

Clinical Image

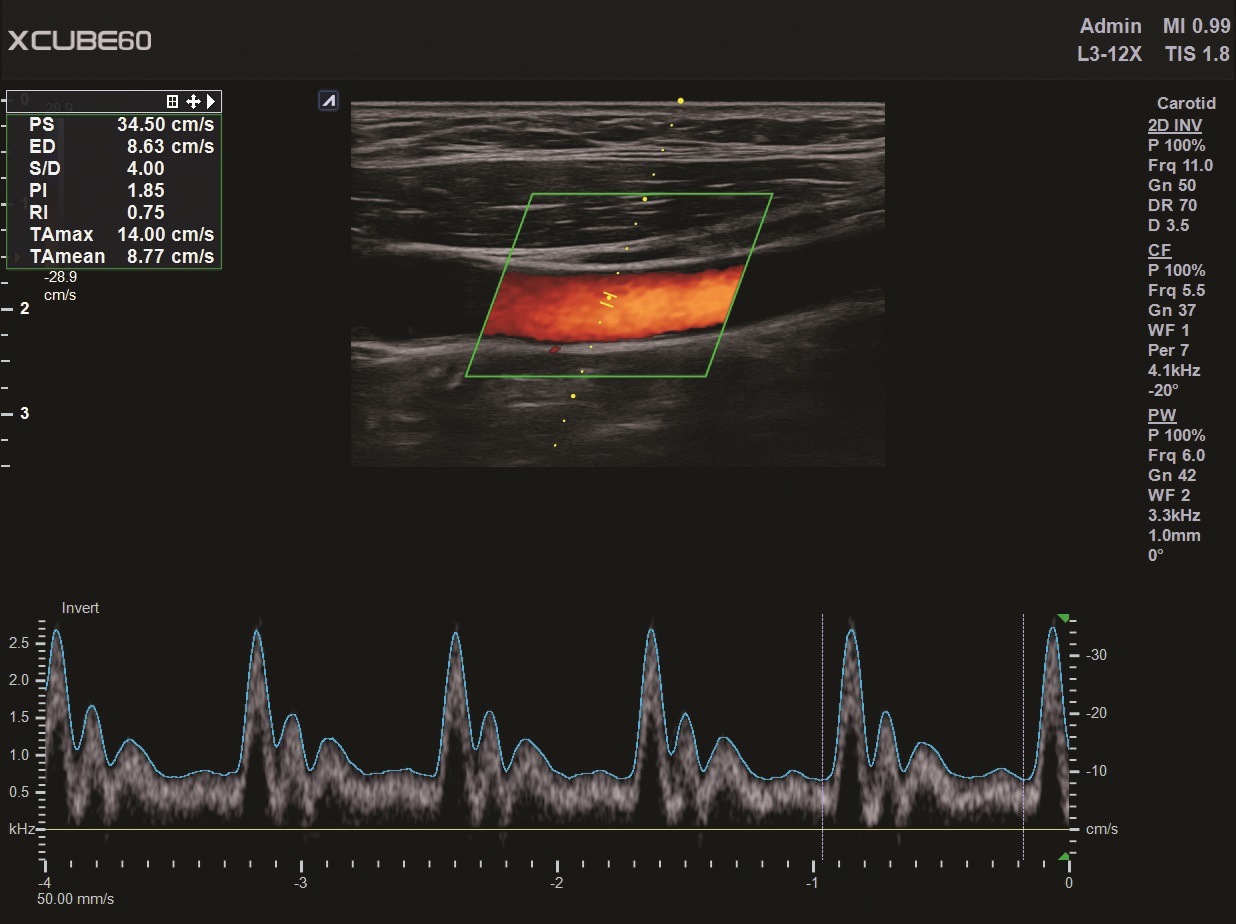

Carotid in PW mode
Liver in CF mode
Shoulder
Thyroid

Design & Ergonomics

01 02 03 04 05 06 07 08 09

Ergonomic design considering operators

0121.5 inch FHD LED Screen
02320° Articulating monitor arm
0312.1 inch Touch screen
04Enhanced usability

One palm control panel

710 ~ 925mm height adjustment

Wrist rest
05Slide keyboard(option)
06 +30°, 0°, -30° Angle adjustable gel
warmer/endocavity probe holder
074 Transducer Connector (1 option)
08Foot rest
09Swivel Lock

Transducers

SC1-7H
X+ Crystal Signature™ convex transducer(1~7MHz)

Application
Abdomen, EM, Gynecology, Obstetrics, Pediatric, Urology
SC2-11H
X+ Crystal Signature™ Microconvex(2~11MHz)

Application
Abdomen, Pediatric, OB/GYN, Urology, EM

L3-8H
High density low frequency linear transducer (3-8MHz)

Application
Breast, EM, MSK, Vascular, Small Parts
L10-25H
Wideband Ultra High Freq. Linear (10~25 MHz)

Application
Vascular, MSK, Small Parts, EM
L3-12X
Extreme-high density linear transducer (3-12MHz)

Application
Breast, EM, MSK, Vascular, Small Parts
L3-15H
High density linear transducers (3-15 MHz)

Application
MSK, Vascular, Small Parts, EM
SL3-19X
X+ Crystal Signature™ Extreme-high density linear transducer (3-19MHz)

Application
Abdomen, Pediatric, Gynecology, Obstetrics, EM, MSK, Vascular, Small Parts, TCD

P1-5CT
Single crystal phased array transducer (1-5MHz)

Application
Abdomen, Cardiac, EM, TCD

EV2-11H
X+ Crystal Signature endocavity transducer(2~11MHz)

Application
Gynecology, Obstetrics, Urology, EM
EC2-11H
X+ Crystal Signature endocavity transducer(2~11 MHz)

Application
Gynecology, Obstetrics, Urology, EM

SVC1-8H
Single Crystal Volume Convex

Application
Gynecology, Obstetrics, Abdomen, Pediatric, Urology, EM
VE3-10H
High density volume endocavity transducer (3-10MHz)

Application
GYN, OB, Urology, EM
