We are Ultrasound Professionals

Focused on the needs of healthcare providers for the higher quality of patient care,
X-CUBE 70 with Elite created from Alpinion’s premium imaging platform, X+ Architecture,
Enabling high resolution, high sensitivity, wideband transducers and the software for various applications.
Beyond that, newly designed transducers and smart workflow bring more comfort to the patients and reduce the time to diagnosis.

  • Spatial Resolution

    X+ FIT’s beamforming technology based
    X 10 data transmission speed X 14 data processing speed

    * Compared to our previous model
    (E-CUBE 15 Platinum)

  • Frame rate

    X+ FIT’s multi-beam
    receiving technology

  • Sensitivity & Penetration

    X+ Crystal Signature technology
    applied new single crystal
    and special materials

eXtensive Insight

Advanced X+ Focus

X+ Focus is the new image processing technology that displays a clearer image. It brings optimal image quality by enhancing true clinical information and suppressing unnecessary noise and other artifacts. Advanced X+ Focus technology, integrated into the X-CUBE 70 with Elite, elevated the level of image performance in terms of Resolution, Penetration, and Uniformity through an evolved SRI library, optimized INV mode, and special image processing algorithm.

X+ FIT

X+Fit utilizes massive parallel beamforming whose architecture is capable of transmitting 4 times larger volume with 10 times faster capacity; and processes data 14 times faster than our previous model (E-Cube 15 Platinum).

eXpanded Capability

The smart diagnostic technologies of the X-CUBE 70 with Elite assist in the more difficult acoustic windows to obtain a more detailed image for improved and confident interpretations.

  • X+ MicroViewX<sup>+</sup> MicroView

    X+MicroView™ utilized advanced color flow filters to display the tiny, slow flow vessels that do not appear with traditional color or power Doppler imaging. Allowing the user to see organ perfusion and pathologies’ flow patterns.

  • Shear Wave Elastography (SWE) SWE

    Shear Wave Elastography evaluates tissue stiffness. This non-invasive and advanced tool provides quantitative assessment for chronic liver disease and suspicious nodule of Thyroid and Breast. The reliable and reproducible result of SWE helps to increase diagnostic confidence.

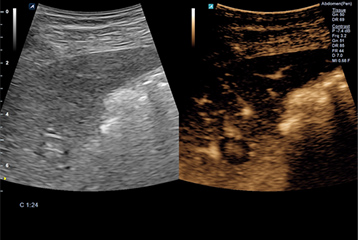

  • CEUS(Contrast Enhancement Ultrasound)

    This is a function to diagnose patients using various angiographic patterns that appear while a contrast medium, administered intravenously, diffuses in blood vessels and organ tissue. CEUS has many advantages in various clinical indications for liver disease.

  • X+ pSWE X<sup>+</sup> pSWE

    Point Shear Wave Elastography shows objective quantified stiffness of tissue using the radiation force from a focused ultrasound beam. Users may identify significant liver fibrosis non-invasively to reduce unnecessary biopsies and increase patient satisfaction. X+ pSWE ensures the highest reliability of measured results by displaying the Reliability Index.

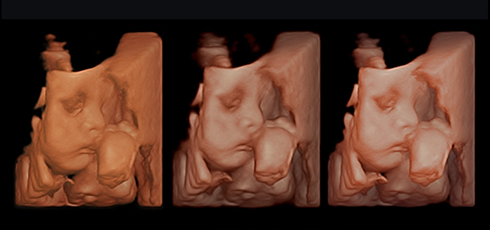

  • Mixed Mode Mixed Mode

    Allows users to create a variety of 3D object results by blending 2 effects from 7 types of rendering.
    Customizes the depth, light expression, and sharpness of the structure to achieve the look you desire.

  • Clear Face X<sup>+</sup> pSWE

    Clear Face detects a fetal face automatically and removes structures that cover fetal face such as cord, placenta, uterus. It allows users to acquire clear view with simple operation.

  • Silhouette Imaging

    New technology provides transparent outlines of a rendered structure, like a fetus. Live HQ, technology using a light source to create shadowing effects, combined with Silhouette allows definition of anatomy underneath the surface. “Glass-like” surface allowing the display of anatomy within the structure.

eXceptional Care

The convenient and safe management system of X-CUBE 70 with Elite improves the work environment more streamlined for healthcare providers.
The data management technology of X-CUBE 70 with Elite with optimized setting for the priority of physicians and the patient information
protection system provide you more efficient medical care.

X+ Assistant

X+ Assistant is customized, complete, exams utilizing scan technologies, image layout, text, and calculations automated for the reduction of keystrokes by approximately 50% per examination.
Improves productivity and reduces errors during the exam. A user may create protocols for all of their sonography exams, if desired.

X+ Auto Biometry

When measuring Estimated Fetal Weight(EFW), the smart recognition algorithm allows you to automatically identify a structure of interest, and measure fetal head circumference (HC), biparietal diameter(BPD), femur length (FL), abdominal circumference (AC) and Humerus.

X+ Compare

This is a feature that allows users to import a patient’s previous study from a PACS server or hard disk and compare when scanning or reviewing. By comparing previous images of the same region, users may easily observe the patient’s progress; thereby making this feature useful when providing patient care.
X+ Compare may be beneficial for reviewing images in E-View, as well.
* X+ Compare supports ultrasound images only.

USB Real-time Recording

USB real-time recording makes data storage easier by
allowing users to record ultrasound scan images on
USB memory in real time. Videos are recorded as
high-definition and stored in system quickly.

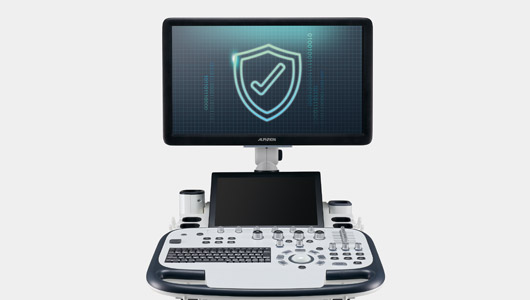

Antivirus Solution

Antivirus scanning is initiated whenever system power ups, thereby securely protecting patient information.

Clinical Image

  • Umbilical Cord in PW Mode

    Bisceps tendon effusion in 2D mode

  • Umbilical Cord in PW Mode

    Brachial Plexus in 2D mode

  • Umbilical Cord in PW Mode

    Breast_Elastography

  • Umbilical Cord in PW Mode

    Breast-in 2D mode

  • Umbilical Cord in PW Mode

    Callateral ligament in 2D mode

  • Umbilical Cord in PW Mode

    Cardiac 4 Chamber view in CF mode

  • Umbilical Cord in PW Mode

    Cardiac in TDI mode

  • Umbilical Cord in PW Mode

    Cervical spine facet injection in 2D mode

  • Umbilical Cord in PW Mode

    Hepatic vein in CF mode

  • Umbilical Cord in PW Mode

    Knee effusion 2D mode

  • Umbilical Cord in PW Mode

    Liver in 2D mode

  • Umbilical Cord in PW Mode

    Lumbar Spine in Live dual mode

  • Umbilical Cord in PW Mode

    Meniscus cyst in 2D mode

  • Umbilical Cord in PW Mode

    Meniscus tear in 2D mode

  • Umbilical Cord in PW Mode

    Subdeltoid bursa injection in 2D mode

  • Umbilical Cord in PW Mode

    Supresupinatus calcification in 2D mode

  • Umbilical Cord in PW Mode

    Tennis elbow calcification in 2D mode

  • Umbilical Cord in PW Mode

    Thyroid in 2D mode

Design & Ergonomics

01 02 03 04 05 06
  • 0123.8 inch FHD LED Screen

    Enjoy a larger widescreen and clear,
    high definition images.

  • 02Tilting Touch Panel

    12.1 inch high resolution touch panel allows users to
    tilt up to 15° for user convenience.

  • 03Additional Transducer Holder

    Providing more ease to pick up
    the transducer and gel, the additional
    holder provides a convenient diagnostic environment to fit the body shape of user.

  • 04Motorized Control Panel

    The control panel may be easily adjusted
    vertically with its motorized button.

  • 055 Transducer connectors

    5 transducer connectors are composed of
    4 active and 1 optional.

  • 06Swivel Lock

    The rear wheels have a swivel lock to control motion of the wheels. User may select all wheel swivel, straight alignment for ease of movement.

Transducer Technology

The primary data source for the creation of ultrasound images.

The key to transducer technology is its process of generating a high sensitivity and wideband acoustic signal and receiving it
without any loss, then converting it to a digital signal. ALPINION MEDICAL SYSTEMS has researched and developed the core technology
of transducers and X+ Crystal signature™ is the accomplishment of all the innovative technologies we've accumulated.

  • 심리스 기술로 내구성 향상 (SL3-19H)
    Reinforce durability with seamless transducer (SL3-19H)

    The seamless transducer increases durability by using a special material, rather than rubber, which can be easily parted or damaged by contact with syringe needles, and also improved cleanliness with an all-in-one type mold.

  • 10-25 MHz 고해상도 프로브 솔루션 (L10-25H)
    10-25 MHz ultra-high frequency transducer (L10-25H)

    Ultra-high frequency linear transducer, L10-25H, allows superficial regions to be displayed more clearly and accurately.

  • 편안한 그립감 (SVC1-8H)
    Comfortable grip (SVC1-8H)

    The light and compact single crystal volume convex transducer features an improved grip.
    * Compared to the transducer SVC1-6H, 20% lighter and 23% smaller volume

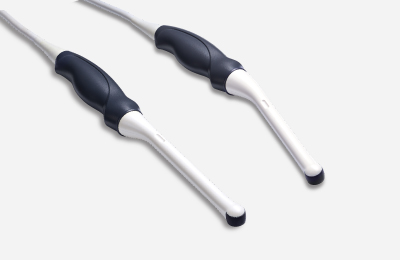

  • Patient FIT transducer (EV/EC2-11H)
    Patient FIT Transducer (EV/EC2-11H)

    Minimizes patient discomfort during diagnoses with 36% smaller tip. Provides optimal care based on patient convenience.
    * Compared to the transducer of previous ALPINION endocavity

Transducers
  • SC1-7H
    SC1-7H

    X+ Crystal Signature™ convex transducer(1~7MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics, Pediatric, Urology

  • SC2-9H
    SC2-9H

    X+ Crystal Signature™ convex transducer(2~9MHz)

    Application

    Abdomen, EM, Gynecology, Obstetrics, Pediatric, Urology

  • SC2-11H
    SC2-11H

    X+ Crystal Signature™ Microconvex(2~11MHz)

    Application

    Abdomen, Pediatric, OB/GYN, Urology, EM

  • L10-25H
    L10-25H

    Wideband Ultra High Freq. Linear (10~25 MHz)

    Application

    Vascular, MSK, Small Parts, EM

  • SL3-19H
    SL3-19H

    X+ Crystal Signature™ linear transducer(3~19MHz)

    Application

    MSK, Vascular, Small Parts, TCD, Abdomen, Pediatric, Gynecology, Obstetrics, EM

  • L3-12X
    L3-12X

    Extreme-high density linear transducer (3-12MHz)

    Application

    Breast, EM, MSK, Vascular, Small Parts

  • L3-15H
    L3-15H

    High density linear transducers (3-15 MHz)

    Application

    MSK, Vascular, Small Parts, EM

  • MP1-5X(NEW)
    MP1-5X(NEW)

    X+ Crystal Signature™ phased array (1~5MHz)

    Application

    Cardiac, TCD, EM, Abdomen, Pediatric

  • EV2-11H
    EV2-11H

    X+ Crystal Signature endocavity transducer(2~11MHz)

    Application

    Gynecology, Obstetrics, Urology, EM

  • EC2-11H
    EC2-11H

    X+ Crystal Signature endocavity transducer(2~11 MHz)

    Application

    Gynecology, Obstetrics, Urology, EM

  • SVC1-8H
    SVC1-8H

    Single Crystal Volume Convex

    Application

    Gynecology, Obstetrics, Abdomen, Pediatric, Urology, EM

  • VE3-10H(NEW)
    VE3-10H(NEW)

    Volume Endocavity

    Application

    Gynecology, Obstetrics, Urology, EM

  • CW5.0
    CW5.0

    Pencil type transducer (5.0MHz)

    Application

    Cardiac

  • CW2.0
    CW2.0

    Pencil type transducer (2.0MHz)

    Application

    Cardiac

  • CW8.0
    CW8.0

    Pencil type transducer (8.0MHz)

    Application

    Cardiac

Resources
  • Transducer Care and Handling Guideline
    Transducer Care and Handling Guideline Download
  • Transducer Disinfectant table
    Transducer Disinfectant table Download
  • XC-90/70 DICOM Conformance Statement
    XC-90/70 DICOM Conformance Statement Download
  • X-CUBE 70 with Elite Catalog
    X-CUBE 70 with Elite Catalog Download
