eXtensive Insight

Powered by X⁺ Architecture

Premium-grade imaging platform X+ Architecture is reinforced by the GPU integrated hybrid engine GPX. Based on the GPX engine, X-CUBE 90 on GPX is capable of providing more accurate data processing, means more in-depth and detailed scanning performance. X+ Focus is new perceptive image processing.
It has advanced speckle reduction imaging and resolution enhancement algorithm.

X+ FIT

X+FIT is a beamforming technology which improves resolution, frame rate, and uniformity.
X+ FIT utilizes massive parallel beamforming whose architectures is capable of transmitting 4 times larger volume
with 10 times faster capacity and also processing data 14 times faster than our previous model.

X+ FOCUS

X+ Focus is new image processing technology that displays a clearer image with massive scan data. It realizes optimal image quality by enhancing true clinical information and suppressing unnecessary noise and other artifacts from rich scan data.
In particular, X+ Focus contributes to accurate diagnosis by providing adequate information, well-defined border, sharp contrast, and rich gray-scale without compromising on maintained tissue information for diagnosis.

Before After

X+ Crystal Signature

X⁺ Crystal signature™ applies a single crystal and our own special materials in the transducer to achieve excellent clarity to extend insight.

: X⁺ Crystal Signature transducer
SC1-7H

: X⁺ Crystal Signature transducer
SL3-19H

Spatial Resolution
X⁺ FIT's beamforming technology based on
X10 data transmission speed
X14 data processing speed
Frame rate
X⁺ FIT's multi-beam receiving technology
Sensitivity & Penetration
X⁺ Crystal Signature technology applied
new Single crystal and Special materials

* Compared to our previous model(E-CUBE 15 Platimum)

eXpanded Capability

X-CUBE 90 on GPX is designed to provide objective and accurate diagnoses based on expanded technology.
Intelligent clinical features upgrade diagnostic accuracy to new levels. Broaden your skills and range of capabilities.

Liver Package

ATI(Attenuation Tissue Imaging)

The ATI quantifies the attenuation to measure the level of steatosis with color-mapped image. The ATI provides quickly calculated value with high reproducibility for diagnosis efficiency. Nonalcoholic fatty liver(NAFLD) is the most common cause of liver dysfunction, with a prevalence of up to 20% of the total population in world wide.
SWE(Shear Wave Elastography)

Shear Wave Elastography evaluates tissue stiffness. This non-invasive and advanced tool provides quantitative assessment for chronic liver disease and suspicious nodule of Thyroid and Breast. The reliable and reproducible result of SWE helps to increase diagnostic confidence.
CEUS(Contrast-Enhanced Ultrasound) with TIC

This is a function to diagnose patients using various angiographic patterns that appear while a contrast medium, administered intravenously, diffuses in blood vessels and organ tissue. CEUS has many advantages in various clinical indications for liver disease. In addition, Time Intensive Curve(TIC)-analysis available with CEUS is a quantitative tool for the dynamic evaluation of target lesions.

General imaging

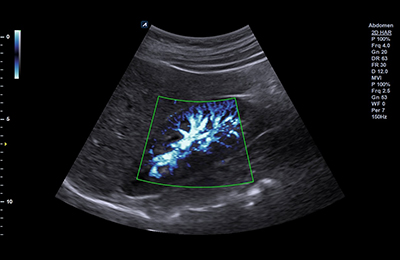

X⁺ MicroView

MicroView is the vascular imaging mode which displays micro blood flow. Users can observe the low-speed blood flow of tiny blood vessel. With this technology, low-speed blood flow areas which users previously couldn't see on Color Doppler are shown at the fast frame rate.

X⁺ pSWE

Point Shear Wave Elastography shows objective quantified stiffness of tissue using the radiation force from a focused ultrasound beam. Users can identify significant liver fibrosis non-invasively, so it reduces unnecessary biopsies and increases patient satisfaction. Especially X⁺ pSWE ensures the highest reliability of measured results by displaying the Reliability Index.

CEUS(Contrast Enhancement Ultrasound)

This is a function to diagnose patients using various angiographic patterns that appear while a contrast medium, administered intravenously, diffuses in blood vessels and organ tissue. CEUS has many advantages in various clinical indications for liver disease.

DPDI(Directional Power Doppler Imaging)

The technology brought improvement in delivering information related to direction of blood flow and sensitivity of Color Doppler. This is useful in sensing relatively slower blood flow in peripheral blood vessels (e.g. renal vessels, peripheral vessels and middle cerebral artery).

MSK

Needle Vision^™ Plus

Beam steering displays shape of needle and in which direction the needle is heading to guide safe injection. With this needle enhancement function, accuracy and safety of procedures will be improved when using a linear transducer. Beam angles can be adjusted by three levels that direction and shape of needle are visible with advanced clarity.

Elastography

Elastography is ultrasound imaging technology that reveals relative elasticity of tissues against external pressure. In parallel, relevant pathological information is offered to help reduce unnecessary biopsy. Pressure level on tissues can be monitored real time with an indication bar marked with its scale of one (1) to six (6) to enhance credibility of results.

Panoramic

Panoramic Imaging offers a horizontal image with an extremely extended field of view.

Women’s Health

Silhouette imaging

This new technology provides silhouette outlines of the human fetus and other structures clearly. By using Live HQ™ technology with a shadowing effect, Silhouette imaging technology allows to delineate the outlines of structures present behind the directly visualized structure.

Live HQ

The combination of qualified 3D/4D transducers with strong performance reliability and geometrical accuracy enables ALPINION’s Live HQ™ software to render a realistic fetal shape.

Elastography

Elastography is ultrasound imaging technology that reveals relative elasticity of tissues against external pressure. In parallel, relevant pathological information is offered to help reduce unnecessary biopsy. Pressure level on tissues can be monitored real time with an indication bar marked with its scale of one (1) to six (6) to enhance credibility of results.

Depth View

Rendering mode that gives a three-dimensional effect by applying color according to the depth in direction depth from the view point.

Clear Face

Clear Face detects a fetal face automatically and it removes structures that cover fetal face such as cord, placenta, uterus. It allows users to acquire clear view with simple operation.

Cardio vascular

AutoEF

Auto EF evaluate and measure contraction of the left ventricle by automatically calculating Ejection Fraction (EF). In addition to EF, this function also provides ESD and ESV information to display volume change of the left ventricle. Data can be obtained without user control by automatically detecting the boundary line of the endocardium.

CUBE Strain ^™

With Alpinion’s phased array transducers that implemented X⁺ Crystal Signature technology, more clarity in images is achieved, and with use of the functions, early diagnosis of cardiac disorders can be made possible.

Stress Echo

Stress Echo offers an accurate diagnosis of cardiac disorders by quantifying myocardial deformation.

Auto IMT

Auto IMT allows you to automatically measure intima-media thickness of carotid arteries. It enables more reliable and reproducible assessment.

eXpanded Care

The detailed work process designed by X-CUBE 90 on GPX cares beyond realizing a more efficient working environment for medical professionals. Intuitive directions improve efficiency for medical professionals, and the transducer design provides comfort for the patient, thereby improving the quality of diagnoses.

X⁺ Assistant

X⁺ Assistant enables users to reduce key strokes by at least 50% and save time when conducting examinations. In addition, it is also possible to register applications and protocols optimized.

X⁺ Auto Biometry

When measuring Estimated Fetal Weight(EFW),
the smart recognition algorithm allows you to automatically
identify a structure of interestand measure fetal head
circumference (HC), biparietal diameter(BPD), femur length
(FL), abdominal circumference (AC) and Humerus.

X⁺ Compare

This is a feature that allows users to import patients' previous
study from a PACS server or hard disk and compare when scanning and reviewing. X⁺ Compare can be used not only in scan mode, but in review mode (E-View) as well.
* X⁺ Compare supports ultrasound studies only.

USB Real-time recording

USB real-time recording makes data transfer easier by
allowing users to record ultrasound scan images on USB
memory in real time. Videos are recorded as high-definition
and stored in system quickly.

Transducer Technology

The primary data source for the creation of ultrasound images.

X⁺ Crystal signature^™

The key to transducer technology is its process of generating a high sensitivity, wideband acoustic signal and receiving it without any loss, then
converting it to a digital signal. ALPINION MEDICAL SYSTEMS has researched and developed the core technology of transducers and X⁺ Crystal Signature is
the accomplishment of all the innovative technologies we've accumulated.

Special matching layer

We use a special material to increase the penetration efficiency of the acoustic power, thereby improving sensitivity and bandwidth.
Upgraded Single Crystal

The upgraded single crystal features improved transmissivity of the ultrasound and produces high-resolution images.
Quasi decoupling layer

Its unique structure increases ultrasound penetration efficiency and makes it possible to reach deeper tissue.
Signal loss minimization

ALPINION's special material minimizes signal loss and maximize heat dissipation with our special material.
* Thermal conduction efficiency increased 3.5 times compared to our previous product
High sensitivity signal transmission

High performance low loss cable transmits high sensitivity signals to achieve optimal impedance matching with the system.

Clinical Image

Kidney X⁺MicroView
Kidney X⁺MicroView(2)
Liver-in-CF-mode
Lumbar Spine in 2D mode
Pancreas
Thyroid
Thyroid nodule in CF mode
Shoulder in 2D mode
Breast cyst
Breast nodule in 2D mode
4 chamber-view
Uterus in 2D mode
4 chamber view TDI
Cardiac TDI in PW mode
Fetus face with Depth View
Fetal echo
Fetus cord brilliant flow
Surface fetal spine
Kidney-in-CF-mode
Gallbladder in 2D mode
Hepatic Vein
Portal vein
Portal vein X+MicroView

Design & Ergonomics

01 02 03 04 05

0123 inch FHD LED Screen

Enjoy a larger widescreen and clear, high definition images.
0212.1 inch tilting LCD color touch panel

We've combined angle adjustment functionality with its larger, full-color touch panel to maximize user convenience
03320° Articulating Monitor Arm& ±90°, 60° Angle Adjustable Gel Warmer

Ergonomic design helps to promote healthy posture, which reduces musculoskeletal pain.
04Motorized Control Panel

The control panel can be easily adjusted vertically as it is motorized.
055 Transducer connectors

You can use a variety of transducers as required with no need to replace them, and thus saving time during conducting diagnosis

Transducers

SC1-7H
X+ Crystal Signature™ convex transducer(1~7MHz)

Application
Abdomen, EM, Gynecology, Obstetrics, Pediatric, Urology
SC2-9H
X+ Crystal Signature™ convex transducer(2~9MHz)

Application
Abdomen, EM, Gynecology, Obstetrics, Pediatric, Urology
SC2-11H
X+ Crystal Signature™ Microconvex(2~11MHz)

Application
Abdomen, Pediatric, OB/GYN, Urology, EM

L3-8H
High density low frequency linear transducer (3-8MHz)

Application
Breast, EM, MSK, Vascular, Small Parts
L10-25H
Wideband Ultra High Freq. Linear (10~25 MHz)

Application
Vascular, MSK, Small Parts, EM
SL3-19H
X+ Crystal Signature™ linear transducer(3~19MHz)

Application
MSK, Vascular, Small Parts, TCD, Abdomen, Pediatric, Gynecology, Obstetrics, EM
L3-12X
Extreme-high density linear transducer (3-12MHz)

Application
Breast, EM, MSK, Vascular, Small Parts
SL3-19X
X+ Crystal Signature™ Extreme-high density linear transducer (3-19MHz)

Application
Abdomen, Pediatric, Gynecology, Obstetrics, EM, MSK, Vascular, Small Parts, TCD

SP3-8T
Single crystal phased array transducer (3-8MHz)

Application
Abdomen, Cardiac, EM, Pediatric
MP1-5X(NEW)
X+ Crystal Signature™ phased array (1~5MHz)

Application
Cardiac, TCD, EM, Abdomen, Pediatric

EV2-11H
X+ Crystal Signature endocavity transducer(2~11MHz)

Application
Gynecology, Obstetrics, Urology, EM
EC2-11H
X+ Crystal Signature endocavity transducer(2~11 MHz)

Application
Gynecology, Obstetrics, Urology, EM

SVC1-8H
Single Crystal Volume Convex

Application
Gynecology, Obstetrics, Abdomen, Pediatric, Urology, EM
VE3-10H(NEW)
Volume Endocavity

Application
Gynecology, Obstetrics, Urology, EM
